alveoair® Clinical
Transform your Respiratory practice with alveoair® Clinical.
Digitize your respiratory practice with alveofit® ecosystem products and delivery most advance care

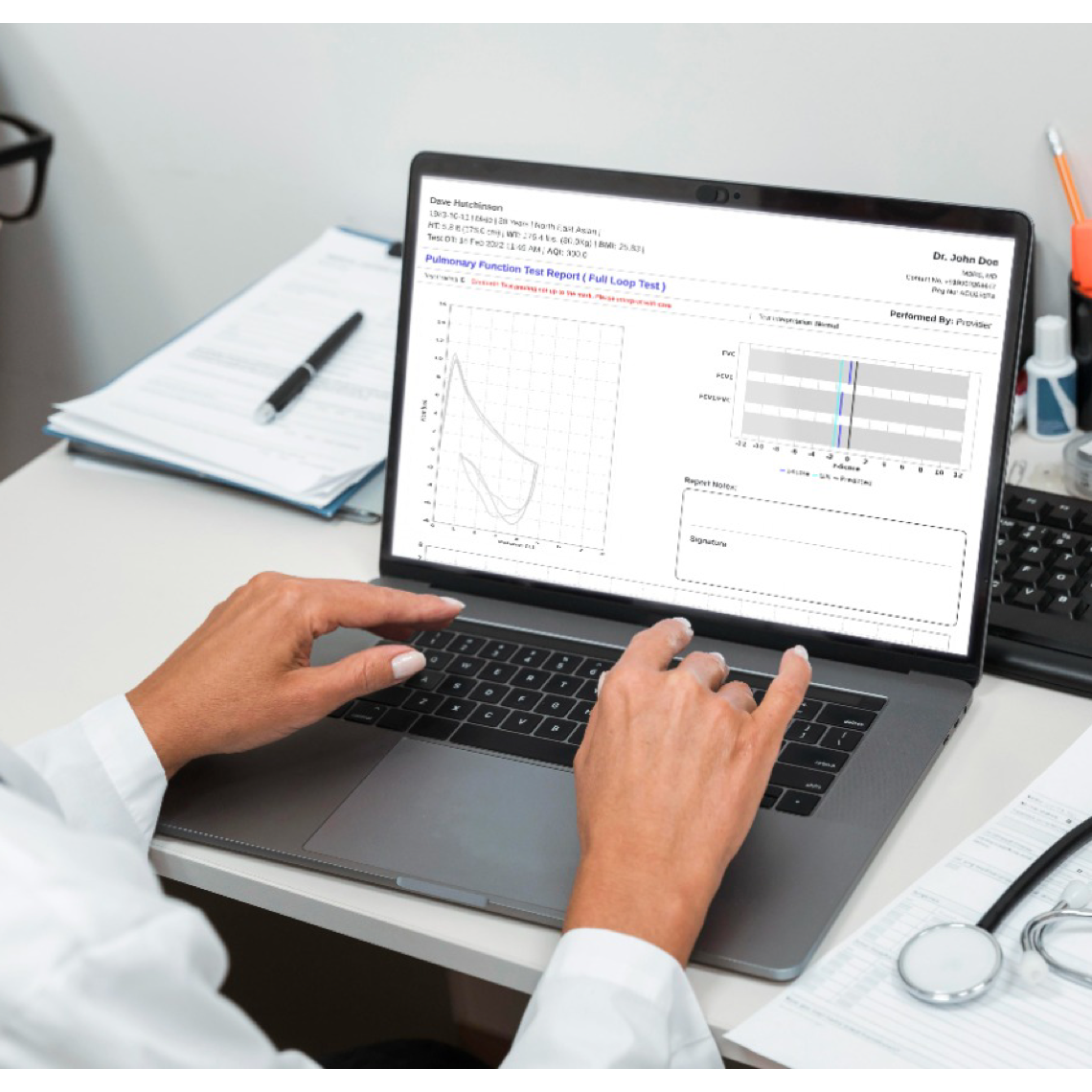

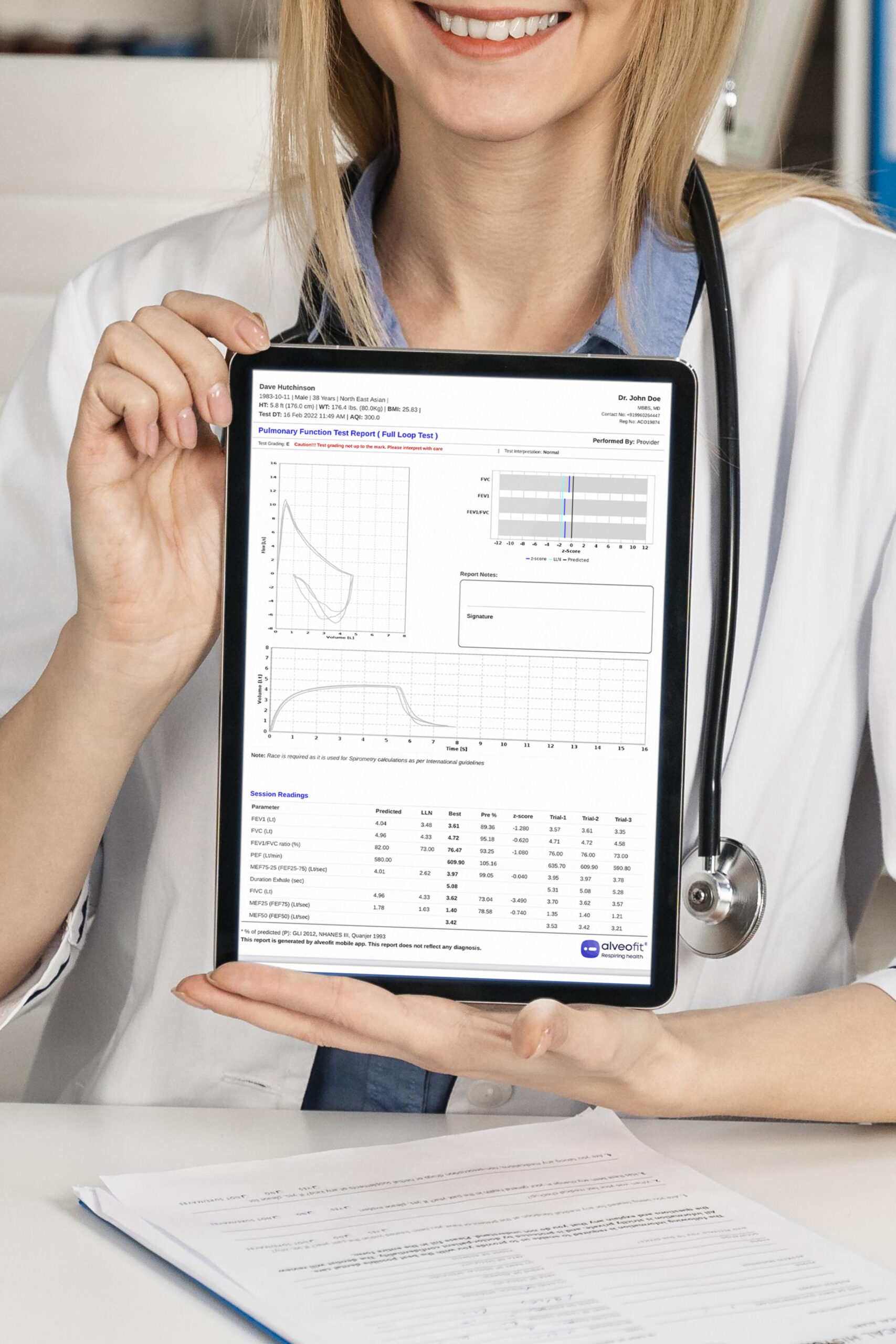

Comprehensive reports
Print and share
ATS/ERS Compliant
Compliance with latest standard made easy
alveofit® eco-system help you keep up with latest ATS/ERS standard. As soon as regulatory bodies upgrade their standards, we have them updated in our system. Hence, hassle free upgrade to latest standards and its reporting.
Integrated Solution
Seamless alveoMD®Integration

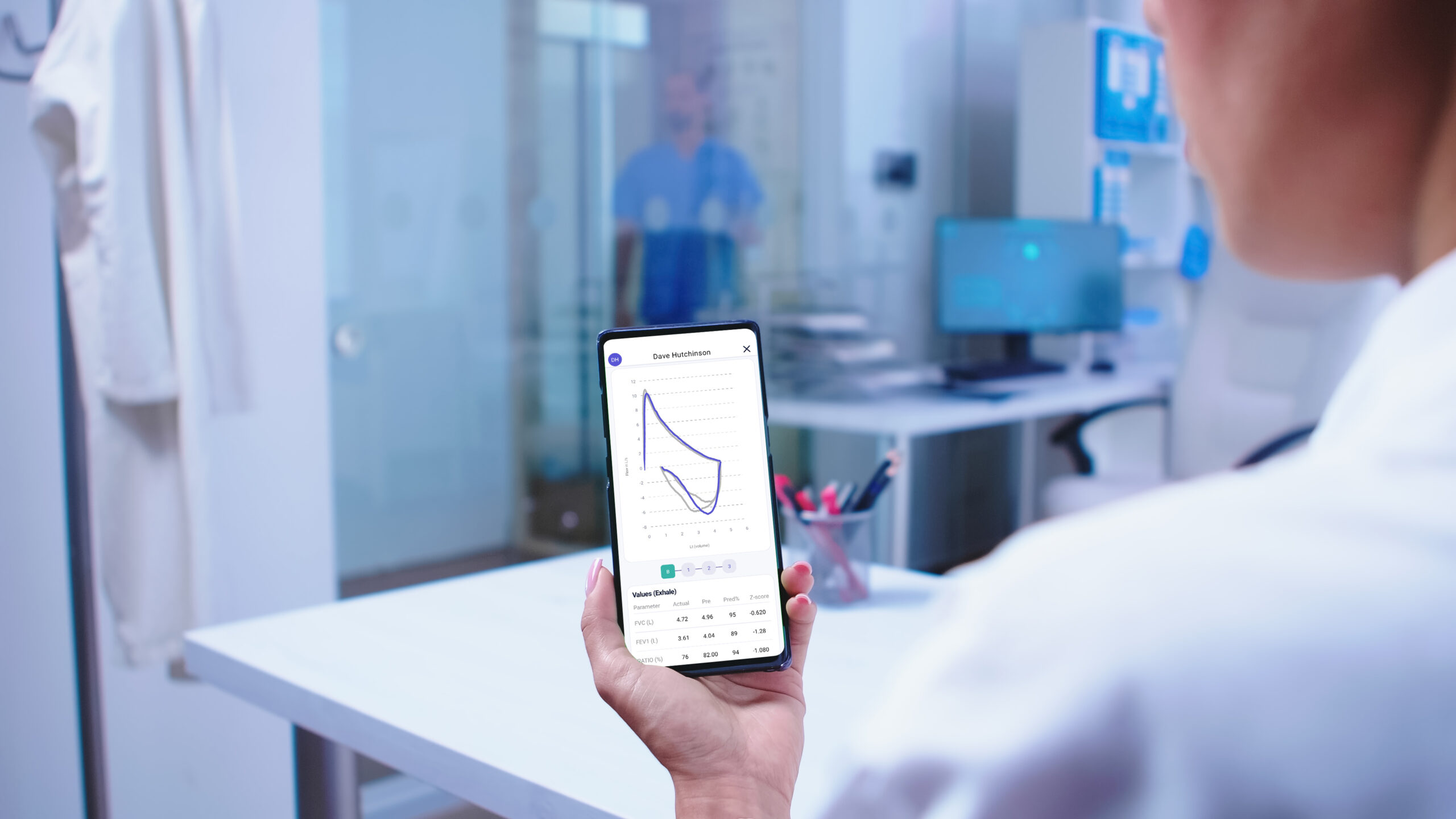

Via our remote patient monitoring mobile app alveoMD® track the spirometry test results of an unlimited number of patients over FEV1, FVC, Ratio, PEF and 30 more parameters over days, months, and years. Reach patient records with a simple touch.
Data driven
Flexible and robust
Research
alveofit® Clinical Research solutions for deeper insights
A flexible and patient-centric clinical research ecosystem capturing real-time digital endpoints.
|
Device Name |
alveoair |
|
Medical Device Class |
Class B |
|
Data Storage |
Cloud Storage |
|
Sensor Technology |
Accu-sense proprietary Optical interference |
|
Flow Range |
0-14 L |
|
Test Modes |
Standard, Full Loop, and Pre-Post bronchodilator |
|
Volume Accuracy |
2.5% or 75 ml whichever is greater |
|
Dimensions (H-L-W) |
H-110 cm. L-56| cm, W-18 mm |
|
Power Supply |
AAA Batteries |
|
Wireless Connection |
BLE 5.4 |
|
Use |
Offices, Clinics, Occupational |
|
Environment |
Health centres, Ambulances, Primary Care centres, Hospitals |
|
Weight (With batteries) |
76 gm |
|
Mouthpiece |
Standard Turbine 28 mm |
|
Predicted Values |
Quanjer 2012 (GU), NHANES IIII 1999 (Hankinson), ERS 1993 |
|
Interface Device |
Android Mobile phone above Android OS 8 |
|
Calibration |
No Calibration is required. (Precalibrated) |
|
Reverse Flow Detection |
Yes |
|
ATS Error Codes |
Lower Limits of Normal (LLN & Zscore Implementation |
|
Quality / Medical Devices / Electrical Safety Standard |
ISO-26782:2009, ISO-23747:2015, IEC 60601-1, IEC 60601-1-11 IEC 60601-1-2, ISO-10993-1, ISO-10993-5, ISO-10993-10, ISO-10993-23, Roundw-Pune-MH/M/ MD/001068, FCC ID 2AV9TD8-52832-01 |
|
Parameters |
FVC, FEVL FEV1/FVC, PEF, MEF25 (FEF75), MEF25 (FEF75), MEFSO (FEF50), MEF75 (FEF25), FEF25-75, Duration Exhale, Lung age, FIVC, PIF, MIF75, MIF50, MIF25, MIF50/MEF50, Duration Inhale, BEV, FEFIO, FEF25-75/FVC, FEF40, FEF50/FVC, FEF60, FEF80, FEV 25, FEV.50, FEV.75, FEV.50/FVC, FEV.75/FVC, FEV3 FEV3/FVC, MEF95 |
Cloud Connectivity
3 Year Replacement Warranty
Easy to Integrate in any Android/ iOS Application
Wireless Printing Solutions
Long Lasting Battery Life
24X7 Customer Support
