alveoair® · Classic

Clinical spirometry.
In your pocket.

A turbine spirometer with ATS/ERS-grade flow-volume curves, sized for the coat pocket and the clinic drawer.

Talk to usTech specs

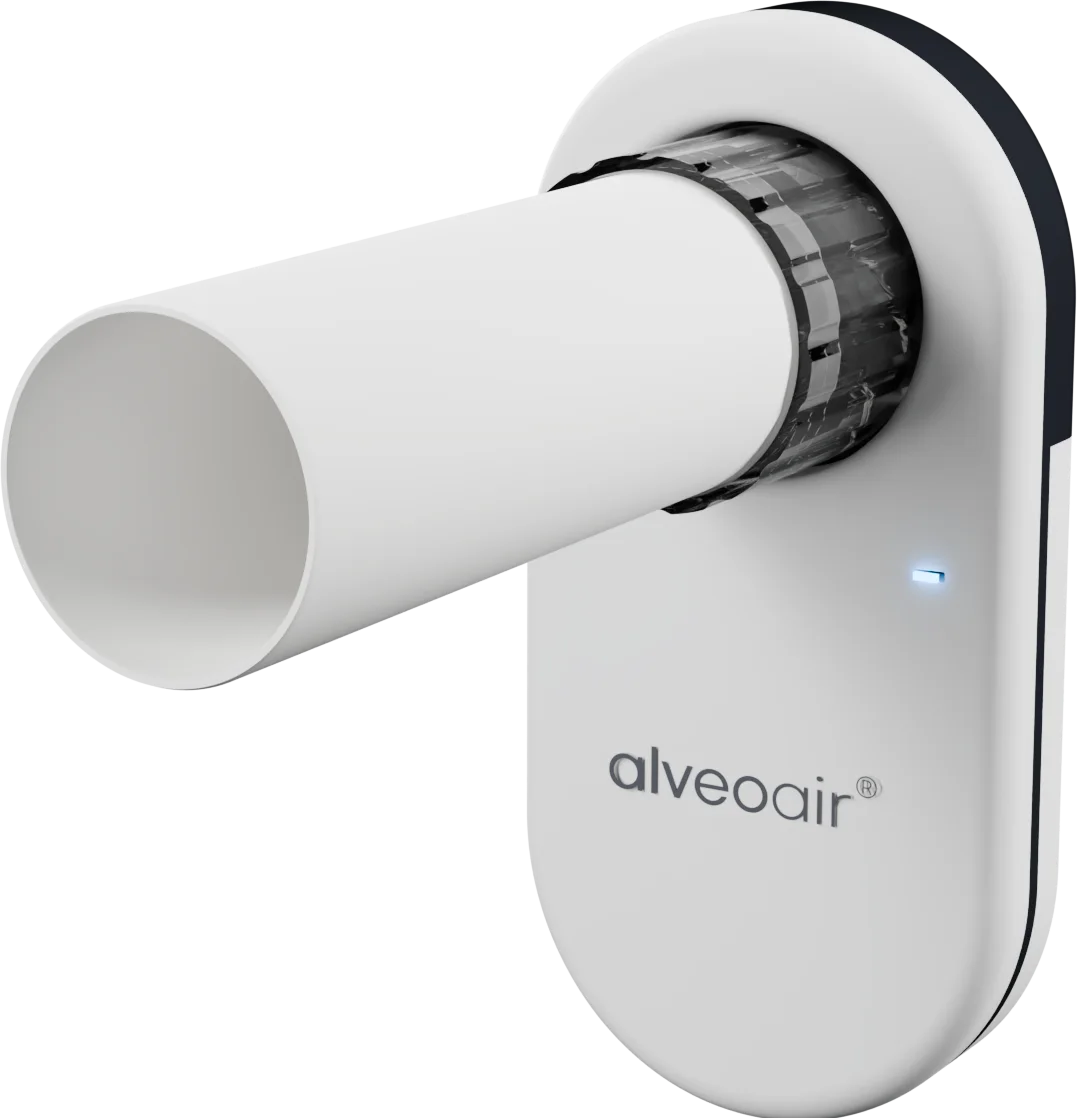

alveoair spirometer with cardboard mouthpiece, three-quarter view
Designed, engineered & made in India
  • Patented in India · No. 409921
  • US FDA 510(k) cleared · K222525
  • Made in India
Powered by alveoSenseAI™Live ATS/ERS quality grading, GLI z-scores, pattern detection, explainable report

Every angle.

Drag to turn it.

Three parts. One clean shape.

Matte where you hold it.
Gloss where it turns.

A white matte front and lid around a gloss mid-frame that carries the turbine. Nothing to assemble, nothing to calibrate in the field.

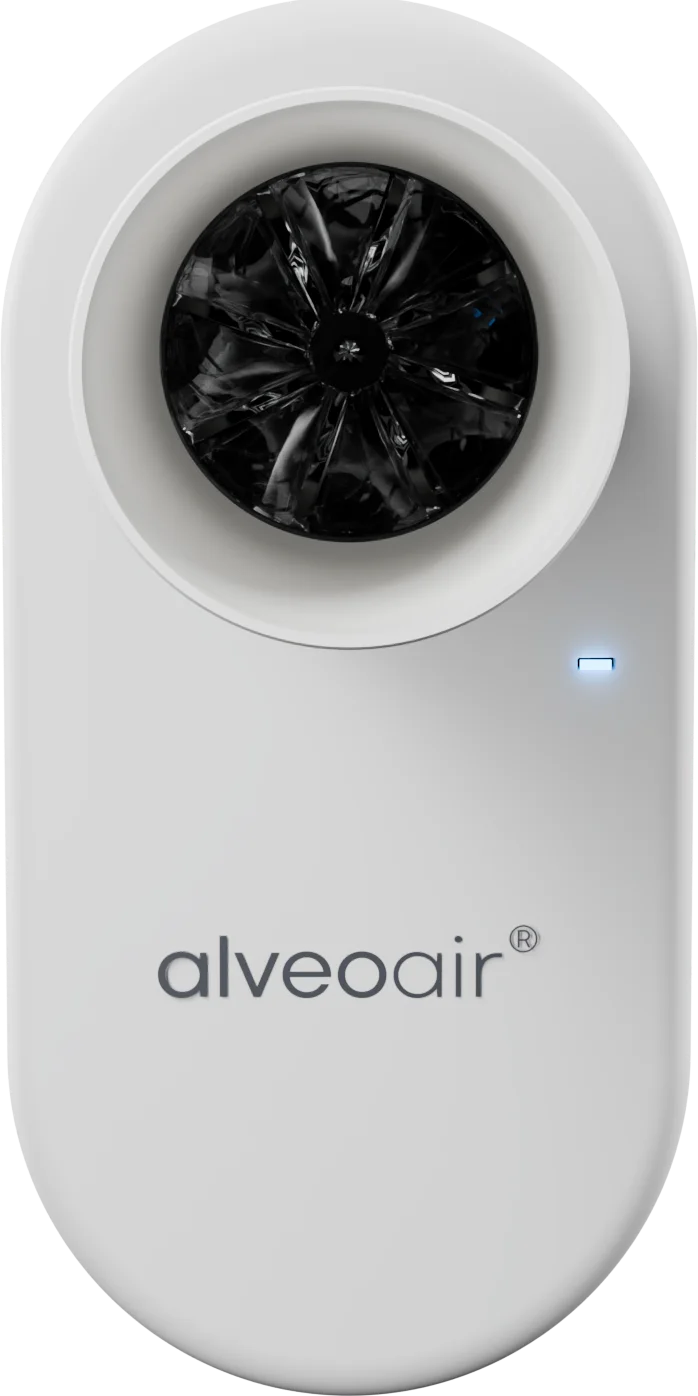

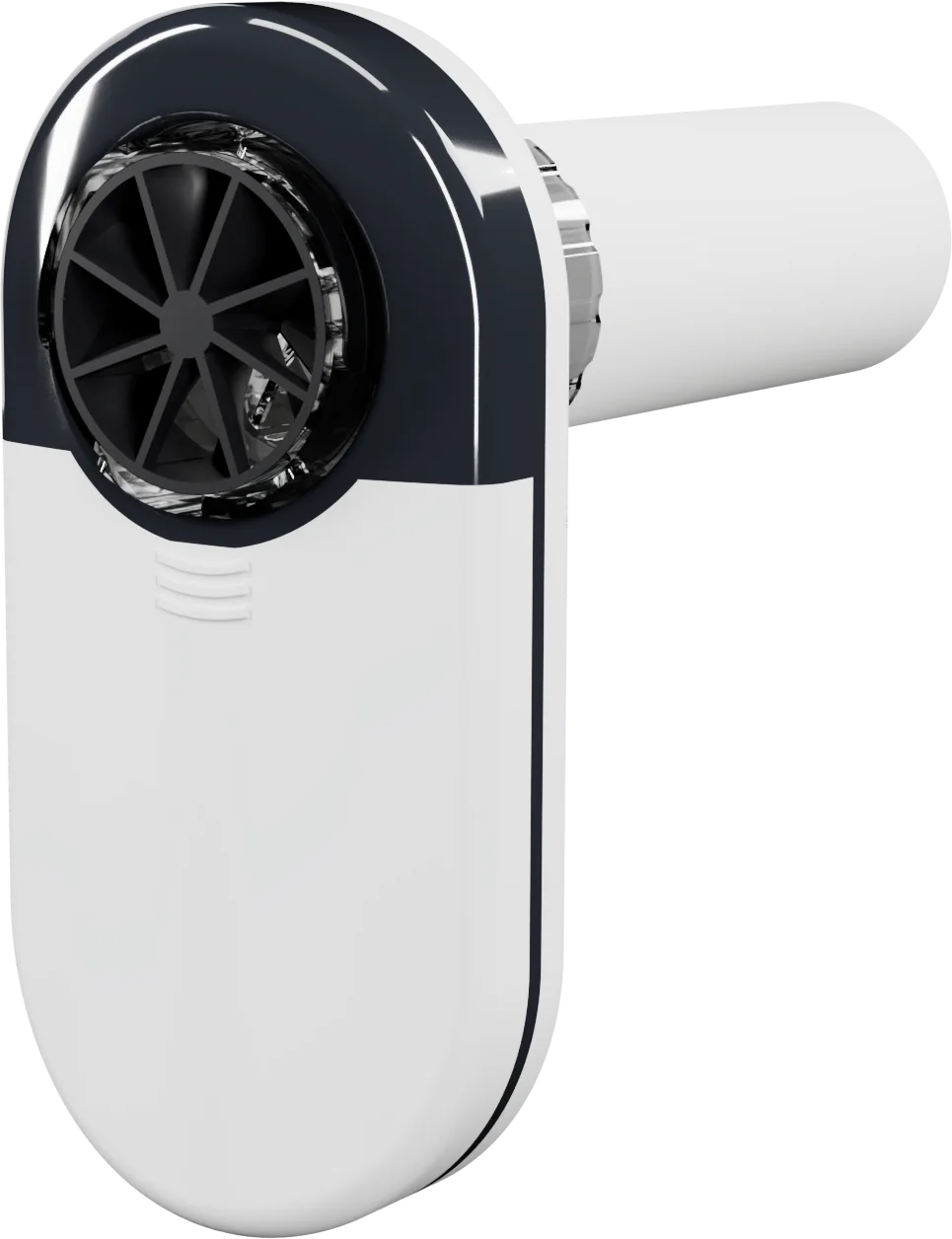

alveoair front view with logo and status lightalveoair rear three-quarter view
Close-up of the alveoair logo and blue status light

Blue means ready

One light. No guesswork.

The status LED tells the patient and the clinician when the turbine is ready for the next blow.

Turbine flow sensing

A rotor, a light beam,
every litre counted.

Air spins a low-inertia vane between fixed stators. Each rotation is counted optically and converted to flow and volume.

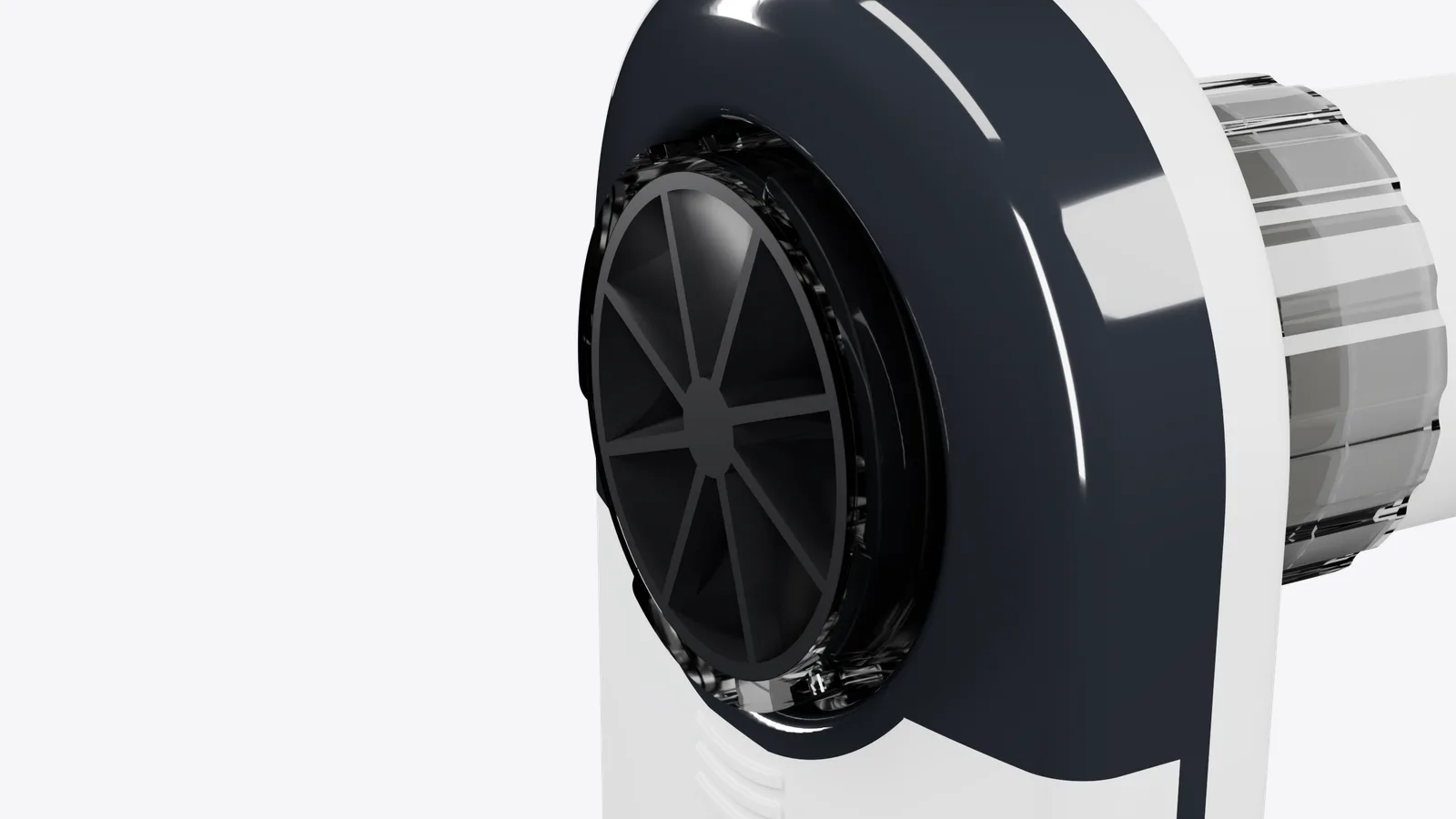

The alveoair turbine protruding from the back of the device

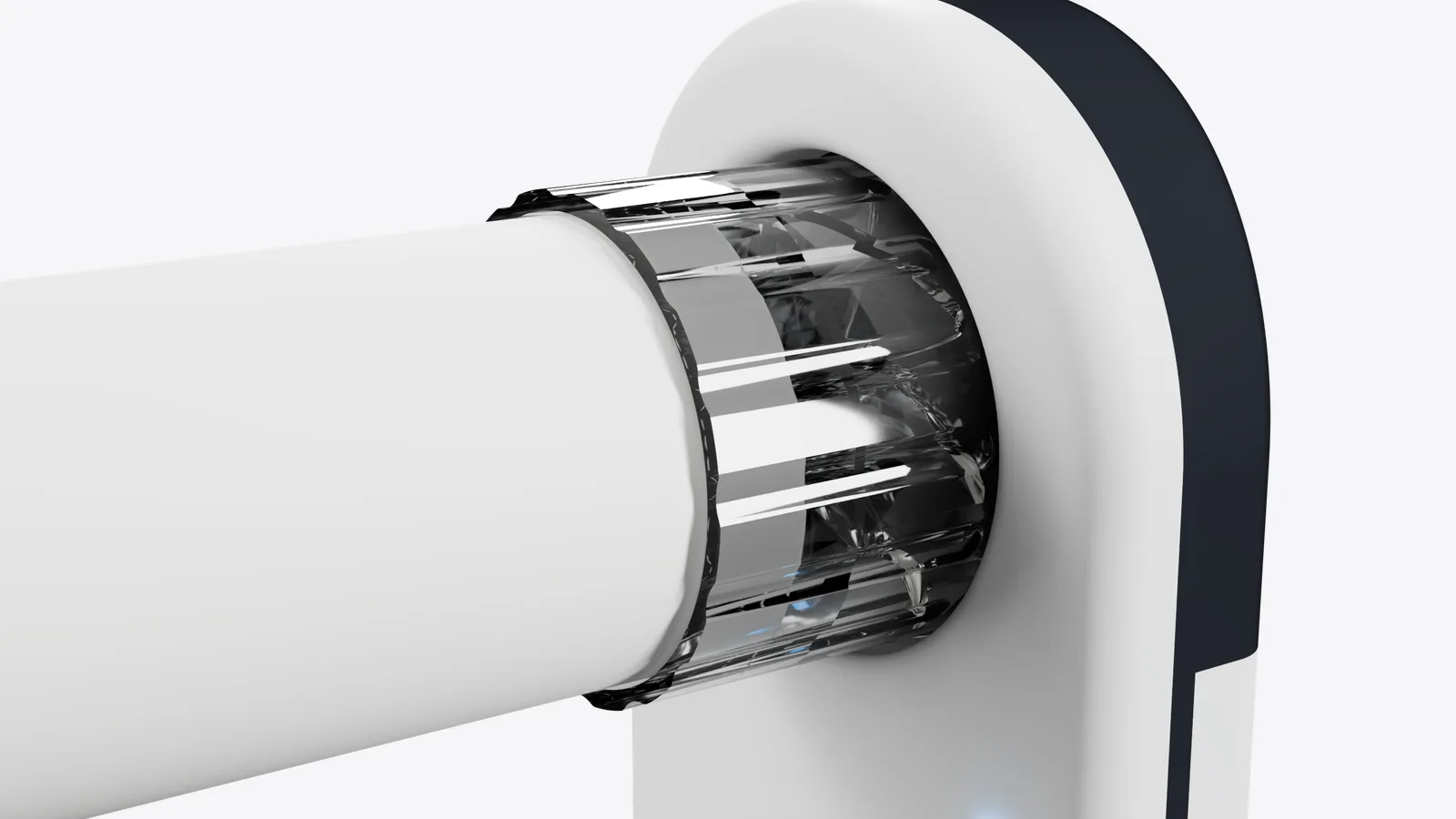

Disposable cardboard mouthpiece seated in the turbine

Single-patient mouthpiece

Fresh cardboard. Every patient.

Standard disposable mouthpieces slide straight onto the turbine. Viral-filter mouthpieces fit too.

Better with alveo Hub

Your alveoair, now part of the lab.

alveoair tests land on the Hub in one record with every other alveofit test. Works offline, and syncs to alveoConnect when you are online.

Meet alveo HubBuild your lab

Tech specs

Method
Turbine spirometry, optical rotation counting
Measures
FVC, FEV1, FEV1/FVC, PEF, FEF25–75, FIVC, PIF and more than 30 parameters, with flow-volume and volume-time curves
Standards
ATS/ERS 2019 spirometry. ISO 26782, ISO 23747
Reference equations
GLI 2012 (Quanjer), NHANES III (Hankinson), ERS 1993; Indian reference equations supported
Mouthpiece
Disposable cardboard, viral-filter compatible
Status
Blue LED indicator
Connectivity
Bluetooth Low Energy to the alveofit and alveoMD apps
Size and weight
About 110 × 56 × 18 mm; 76 g with batteries
Power
AAA batteries
Regulatory
US FDA 510(k) cleared (K222525). CDSCO Class B, manufacturing licence MH/M/MD/001068. IEC 60601-1, IEC 60601-1-2, IEC 60601-1-11. ISO 10993. FCC ID 2AV9TD8-52832-01.

Get the app

Apps for every setting.

Clinical spirometry

alveoMD

Runs spirometry tests with the alveoair spirometer and manages patient records and reports in the clinic.

  • For Doctors, nurses and clinic teams
  • Works with alveoair spirometer. The app needs the device.
  • Available on iPhone and Android
Download on theApp Store Get it onGoogle Play

Spirometry, made simple

alveoMD-lite

A lighter app for spirometry tests with the alveoair spirometer.

  • For Clinicians, patients and fitness users
  • Works with alveoair spirometer. The app needs the device.
  • Available on Android. Not yet on iPhone.
Get it onGoogle Play

All alveofit apps · Need help pairing? Support

  1. Acquisition time of 15–30 seconds of tidal breathing per recording, from the alveoflow FOT System specification. Applies to alveoflow Pro and alveoflow Neo.
  2. FHIR R4 and HL7 v2 export from the alveoflow FOT System specification. ABDM integration supported.
  3. CDSCO Class B under MDR 2017. ISO 13485 and MDSAP as stated on alveo.fit. alveoflow: US 510(k) submission pending; not cleared for sale in the United States. alveoair is US FDA 510(k) cleared (K222525, August 2023).
  4. Screens show example data and do not represent a real patient. Interpretation is the responsibility of the treating clinician.
