alveoOxy · Six-minute walk test
The six-minute walk.
Measured, not guessed.

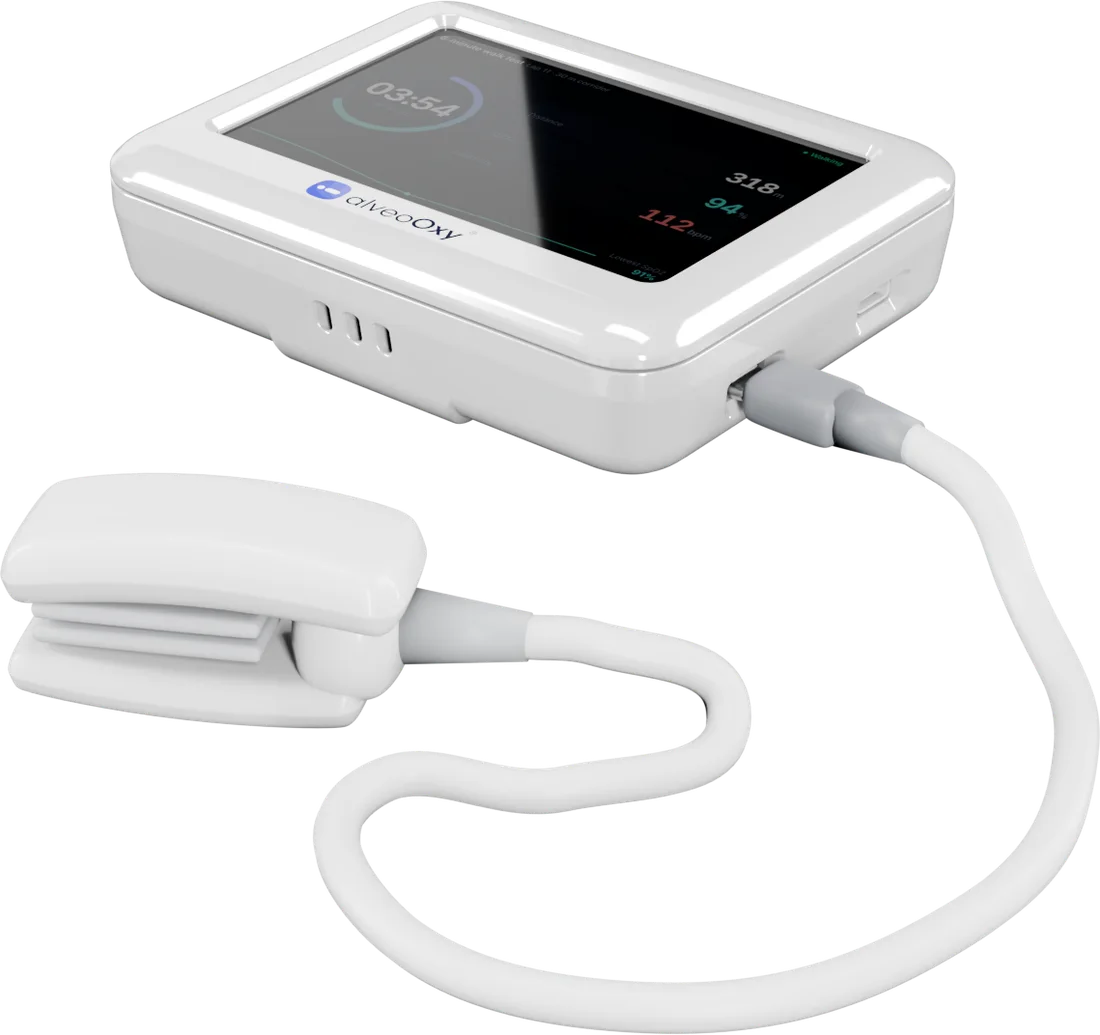

Distance, laps, SpO2 and heart rate, recorded through the walk and the recovery, then filed on the patient's record.
- Designed and built in India
- Arm or waist wear
- Works with alveo Hub
Every angle.
Drag to turn it.

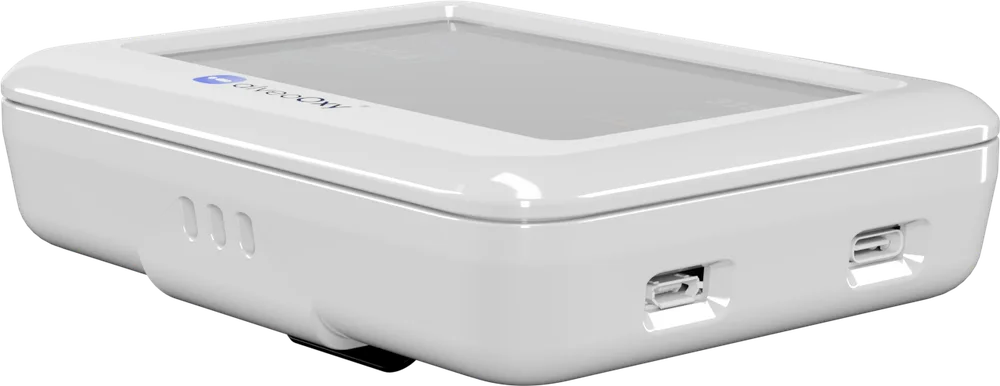

Slim, light, one screen
Everything the technician needs.
Nothing the patient notices.

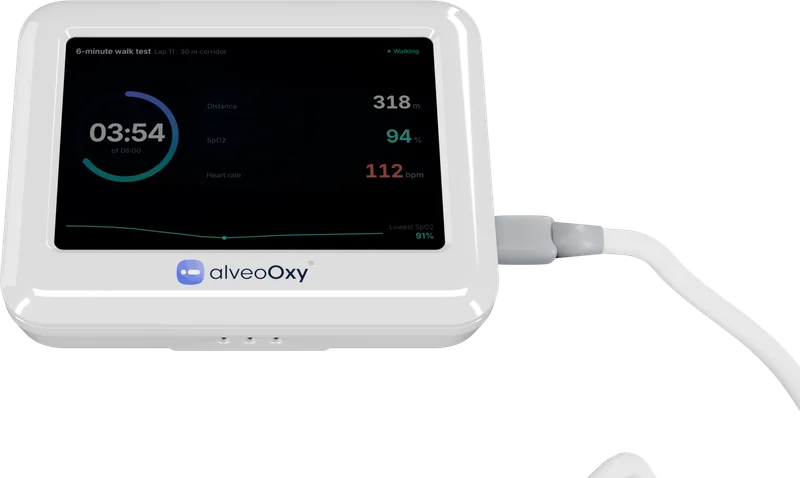

A bright screen shows time, distance, SpO2 and heart rate at a glance. The slim body and rounded edges sit comfortably on the arm or hip for the whole walk.
How it's worn
On the arm or at the waist. Hands free for the walk.
Patients walk at their own pace for six minutes. alveoOxy rides with them, so nobody has to follow with a clipboard and a pulse oximeter.
Illustration

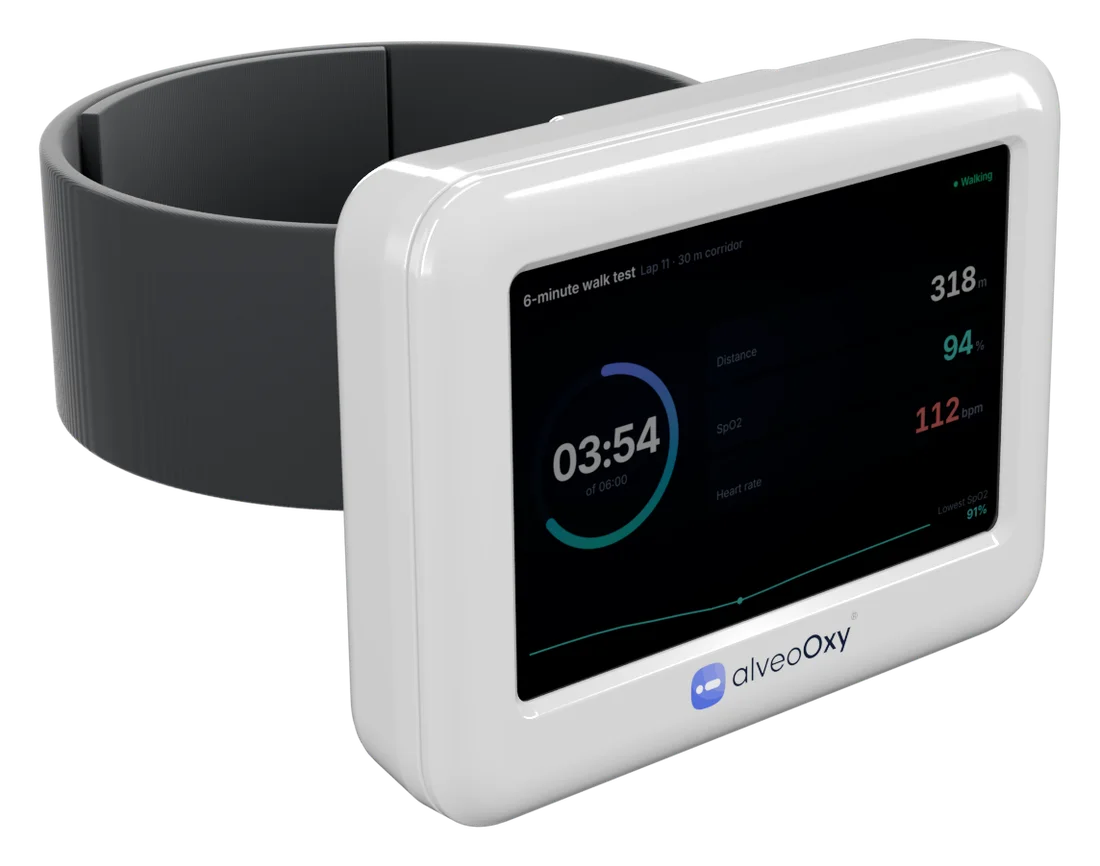

- 1Device on the upper armThe spring clip slides onto a soft arm band, like a phone on a run. The screen faces out for the technician.
- 2Cable along the armThe probe cable runs down the inside of the arm, so it does not swing as the patient walks.
- 3Probe on the index fingerSpO2 and pulse are read at the fingertip for the whole walk.

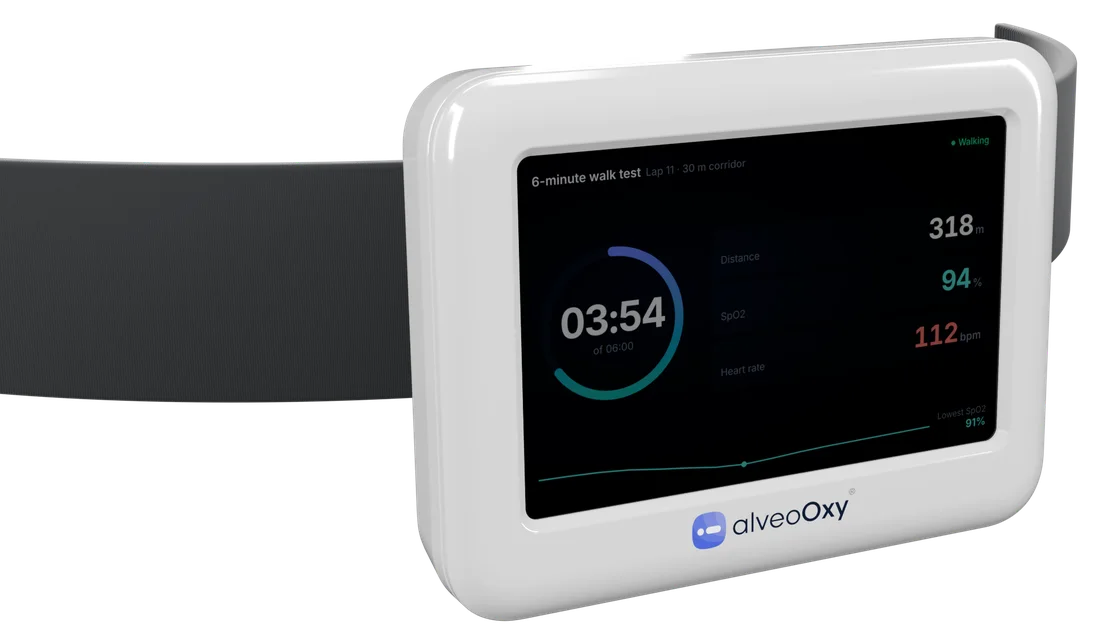

- 1Device at the waistThe same spring clip holds alveoOxy on a belt or waistband, at the hip.
- 2Short cable to the handA short run from hip to hand keeps the arm free to swing naturally.
- 3Probe on the index fingerSpO2 and pulse are read at the fingertip for the whole walk.
Finger probe
Stays on. Reads through the walk.

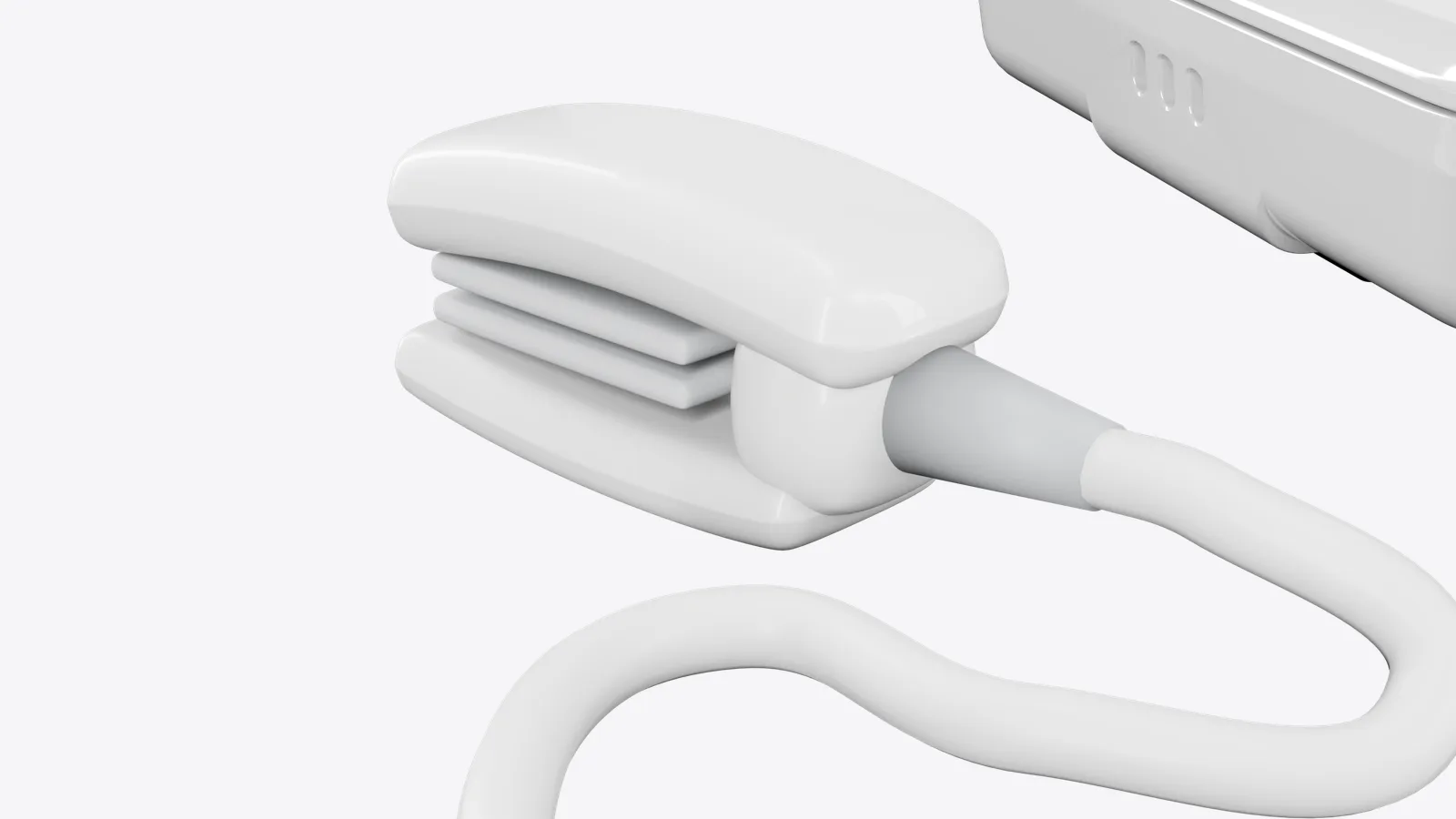

A spring finger clip with soft pads and a strain-relieved cable, made to stay put while the patient walks.
The test
Watch a six-minute walk.
Probe on the index finger
Six minutes shown in about two. Tap the timeline to jump. Illustrative walk, not patient data.
Recorded live
Every second of the walk and the recovery.
alveoOxy times the walk, counts laps and captures SpO2 and heart rate live, with no manual entries. The lowest SpO2 and the recovery are kept on the report.
Minutes
Illustrative walk. Not patient data.
Who it helps
One walk. Four clinical questions.
Track oxygen desaturation and exercise tolerance over time.
See exercise-induced symptoms and the response to therapy.
Measure functional capacity before and after the programme.
Assess the combined heart and lung load in one walk.
Reference equations
The right reference
for every patient.
Each walk is compared with a predicted distance and its lower limit of normal. The clinic picks its default equation, and the doctor can change it on any test.
Enright and Sherrill (1998) is standard. Indian cohort equations are being added as research in progress.
WalkedLower limitPredicted
Enright PL, Sherrill DL. Am J Respir Crit Care Med 1998;158:1384–7. Validated for adults aged 40–80. For illustration, not for diagnosis.
One connector
Plug in the probe.
Start walking.

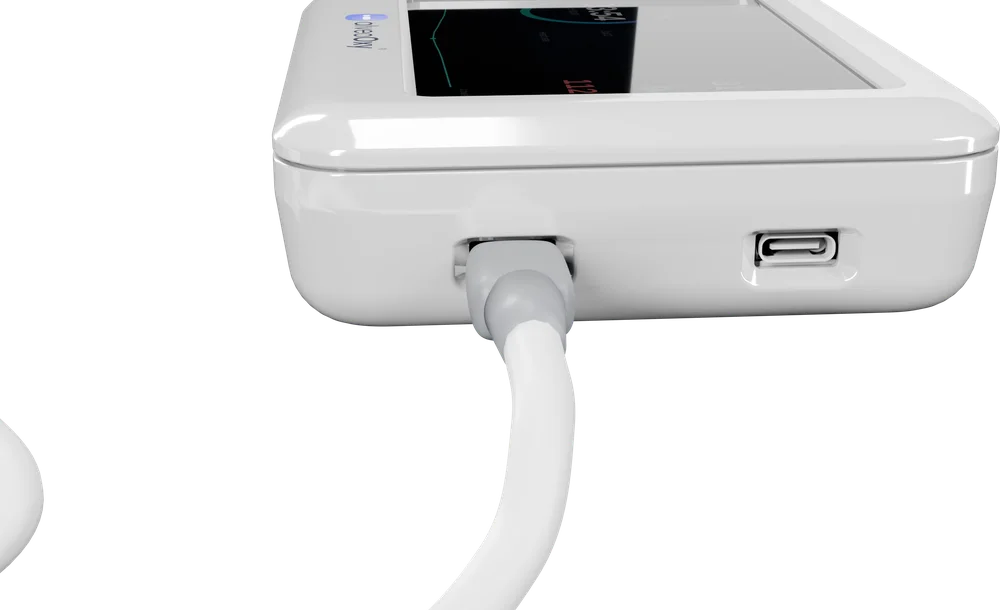

The probe connects at the side. Charge and sync over the same port between patients.
From the corridor to the record.
Before
Resting SpO2 and heart rate are taken and the patient's details come from the Hub.
During
Laps are counted on a 30 m course while SpO2 and heart rate are logged throughout.
After
Distance against predicted, lowest SpO2 and recovery go to the patient's record for review and sign-off.
Complete Respiratory Bundle
Spirometry, oscillometry and the walk test, together.
Airflow, airway resistance and exercise oxygen tell the whole story in one visit.
Better with alveo Hub
The walk test, in the full picture.
Distance, SpO2 and heart rate from alveoOxy land on the Hub next to spirometry and oscillometry. Works offline, and syncs to alveoConnect when you are online.
Tech specs
- Test
- Six-minute walk test, following ATS/ERS technical standard
- Measures
- Distance, laps, SpO2, heart rate, lowest SpO2, recovery
- Probe
- Finger clip SpO2 probe, side connector
- Display
- 3.5-inch LCD
- Reference equations
- Enright and Sherrill 1998; Indian cohort equations in research
- Wearing
- Spring clip for waist belt or arm band
- Records
- Sync to the alveo Hub and alveoConnect
- Size and weight
- About 115 × 59 × 23 mm (phone-sized, 0.9 inch thick); about 200 g
- Power
- Built-in 2,000 mAh rechargeable battery
- In the box
- alveoOxy, SpO2 finger probe, quick start guide
- Works with
- alveofit app on mobile and tablet; reports sync to the cloud
